The fluid migration system and gas hydrate enrichment and accumulation in southern South China Sea
Received date: 2024-06-03
Revised date: 2024-11-19
Online published: 2025-05-30

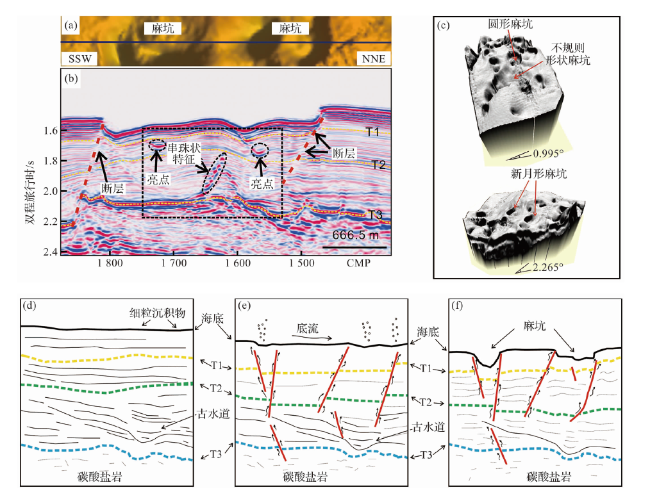

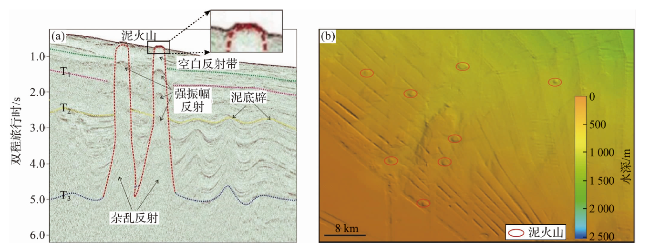

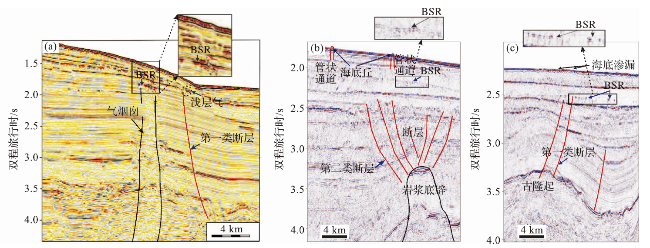

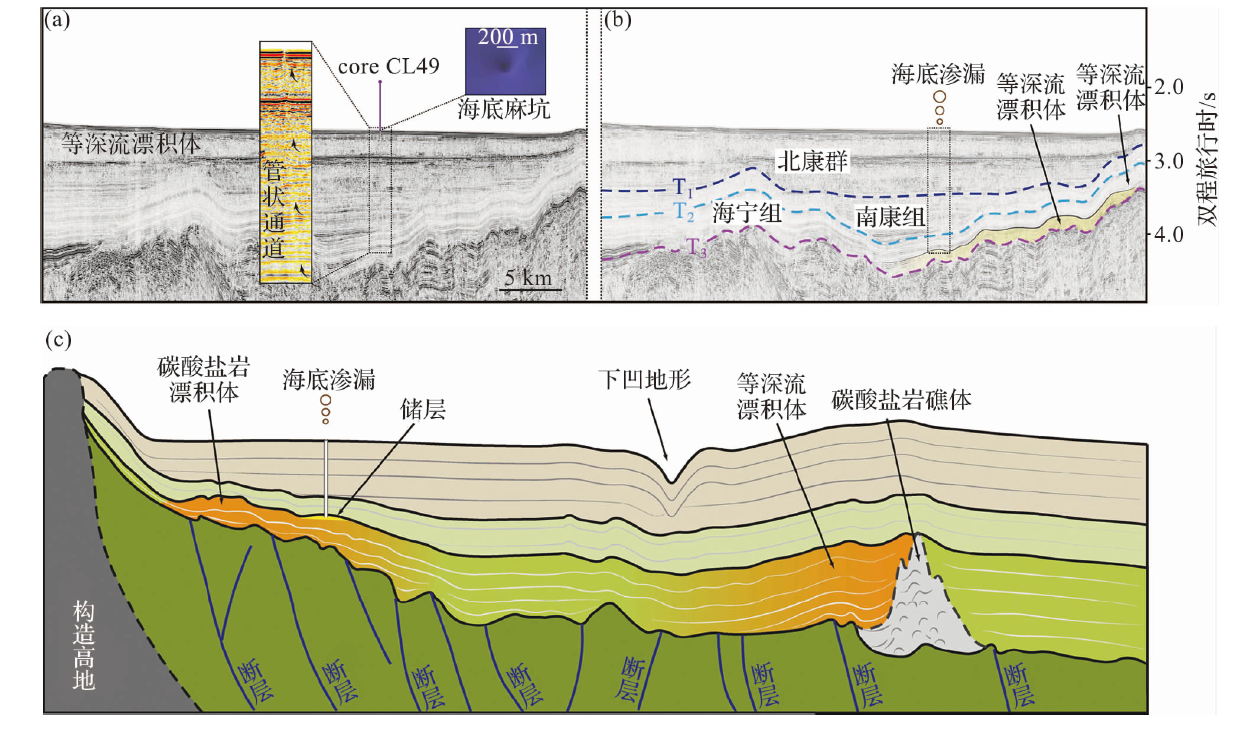

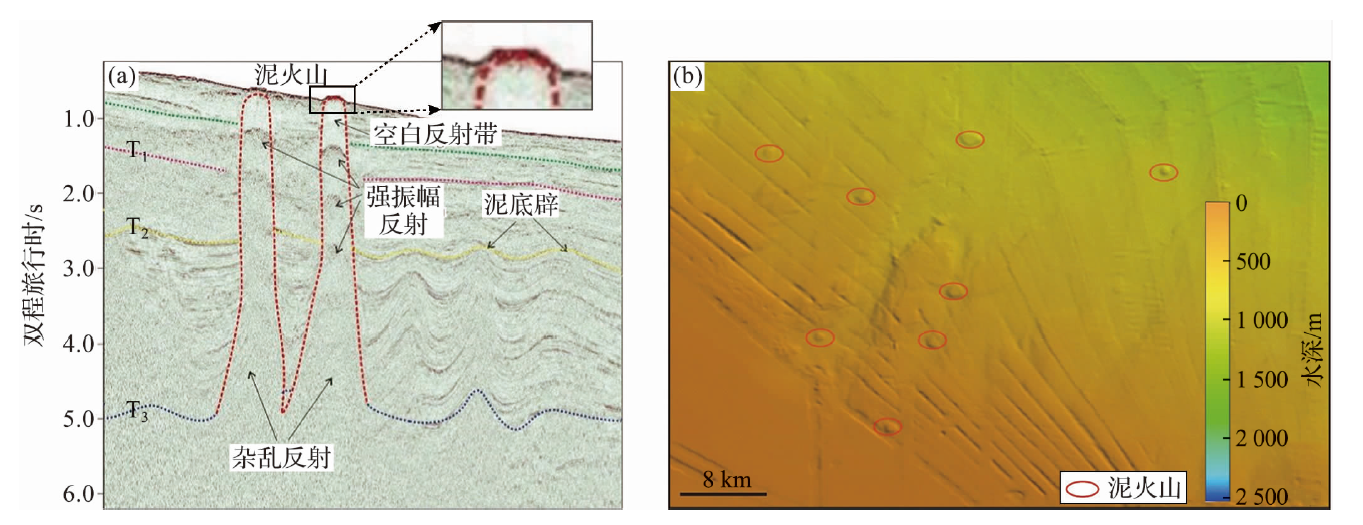

The Zengmu-Beikang Basin, located in the southern South China Sea, was formed under a complex geological background, with a large number of oil and gas reservoirs developed, and various types of fluid flow structures widely distributed. Seismic data indicate that the fluid flow system composed of gas chimneys, faults, tubular channels, mud volcanoes, and mud diapirs in the southern South China Sea may be related to the accumulation of gas hydrates. Seabed seepage and bottom simulating reflection (BSR) indicate the possible existence of gas hydrates. The formation of gas chimneys originates from hydraulic fracturing caused by deep oil-gas accumulation, which transports fluids to shallow areas. The gas chimneys are related to BSR, indicating the enrichment of gas hydrates. Faults developed in deep and were connected to potential source rocks or reservoirs, thus accumulating a large amount of shallow gas and gas hydrates around the faults. Pockmark is also an indicative structure for seabed seepage and an area where cold seepage gas hydrates are usually enriched. The formation of mud volcanoes and mud diapirs not only leads to vertical fluid migration, but also triggers the shallow strata deformation and fault development. Therefore, the development areas of mud volcanoes and mud diapirs are also potential areas for gas hydrate enrichment. In addition, this article uses the volume method to estimate the gas hydrate resources in the Zengmu-Beikang Basin in the southern South China Sea. The results show that the gas hydrate resources in the Zengmu-Beikang Basin are approximately 1.62×1013 m3. The Zengmu-Beikang Basin has strong potential for gas hydrate resources and is a region worthy of attention for future gas hydrate exploration activities.
WANG Xiuping , YANG Pengcheng , LIU Fangyuan . The fluid migration system and gas hydrate enrichment and accumulation in southern South China Sea[J]. Journal of Marine Sciences, 2025 , 43(1) : 47 -56 . DOI: 10.3969/j.issn.1001-909X.2025.01.005
[1] |
|
[2] |
|
[3] |
|
[4] |
|
[5] |
|
[6] |
|
[7] |
吴能友, 张海啟, 杨胜雄, 等. 南海神狐海域天然气水合物成藏系统初探[J]. 天然气工业, 2007, 27(9): 1-6.
|
[8] |
苏丕波, 梁金强, 张伟, 等. 南海北部神狐海域天然气水合物成藏系统[J]. 天然气工业, 2020, 40(8): 77-89.
|
[9] |
王秀娟, 靳佳澎, 郭依群, 等. 南海北部天然气水合物富集特征及定量评价[J]. 地球科学, 2021, 46(3):1038-1057.
|
[10] |
骆帅兵, 张莉, 雷振宇, 等. 陆坡盆地体系深水重力流形成机制、沉积模式及应用实例探讨[J]. 石油实验地质, 2017, 39(6): 747-754.
|
[11] |
|
[12] |
|
[13] |
|
[14] |
雷振宇, 张莉, 苏明, 等. 南海南部北康盆地中中新世深水沉积体类型、特征及意义[J]. 海洋地质与第四纪地质, 2017, 37(6): 110-118.
|
[15] |
王建桥, 姚伯初, 万玲, 等. 南海海域新生代沉积盆地的油气资源[J]. 海洋地质与第四纪地质, 2005, 25(2): 91-100.
|
[16] |
鄢伟, 张光学, 张莉, 等. 南海南部北康盆地中新世碳酸盐台地地震响应及分布特征[J]. 海洋地质与第四纪地质, 2018, 38(6): 118-126.
|
[17] |
鄢伟, 张光学, 张莉, 等. 南海南部陆缘地质流体类型及其油气成藏意义[J]. 中国地质, 2018, 45(1): 39-47.
|
[18] |
王宏斌, 姚伯初, 梁金强, 等. 北康盆地构造特征及其构造区划[J]. 海洋地质与第四纪地质, 2001, 21(2): 49-54.
|
[19] |
|
[20] |
|
[21] |
|
[22] |
|
[23] |
|
[24] |
|
[25] |
|
[26] |
|
[27] |
孙鲁一, 张广旭, 王秀娟, 等. 南海神狐海域天然气水合物饱和度的数值模拟分析[J]. 海洋地质与第四纪地质, 2021, 41(2): 210-221.
|
/
〈 |
|
〉 |
