Utilizing HCR-FISH to investigate the status of anaerobic methanotrophic archaea in cold seep sediments

doi:10.3969/j.issn.1001-909X.2025.01.003

Abstract

Abstract:

The anaerobic oxidation of methane (AOM) is a pivotal component of elemental cycling within cold seep sediments. This process is usually performed by anaerobic methanotrophic archaea (ANME) and sulfate-reducing bacteria (SRB), which usually exist as symbionts. However, pure cultures of ANME have not yet been obtained, and their slow metabolism hinders further exploration and research into their metabolic characteristics and collaborative mechanisms. In this study, we utilized hybridization chain reaction-fluorescence in situ hybridization (HCR-FISH) technology and high-throughput 16S rRNA gene sequencing to investigate the composition and state of ANME communities at different depths of the sediments in the black microbial mat area of the South China Sea Formosa cold seep. The results showed that ANME-1 and ANME-2 were the dominant groups in the sampled Formosa cold seep sediments. Specifically, ANME-2 was found to form consortia with SRB, while no such associations were detected for ANME-1. This observation suggested that ANME-2 and SRB primarily engage in symbiotic AOM processes, highlighting potential differences in physiological roles and methane metabolism pathways between ANME-1 and ANME-2. Furthermore, in sediment samples of all layers, the diameters of ANME-2/SRB consortia were predominantly concentrated between 3-10 μm. Correlation analysis indicated a significant link between the distribution of consortium diameters and environmental factors such as sulfate concentration in the sediment, underscoring the impact of environmental factors on the growth of ANME/SRB consortia. Additionally, using HCR-FISH, we further discovered the presence of multiple consortium clusters in the Formosa cold seep sediment, characterized by orderly connected and uniform-sized consortium, implying possible connections or cooperative relationships among consortia. This study revealed the presence and distribution patterns of ANME groups and sizes of symbiotic microbial consortia in sediment samples from different depths of the Formosa cold seep, laying the foundation for further understanding methane metabolism mechanisms and ecological functions of different ANME groups in situ cold seep sediments.

Key words: cold seep, sediment, ANME, SRB, AOM, microbial consortia, HCR-FISH

CLC Number:

X172
P744.4

HE Maoyu, WANG Jing, LI Sihan, LIANG Lewen. Utilizing HCR-FISH to investigate the status of anaerobic methanotrophic archaea in cold seep sediments[J]. Journal of Marine Sciences, 2025, 43(1): 22-33.

Figures/Tables 8

Tab.1 Information of sediment samples in Formosa cold seep used in this study

样品编号	沉积物描述	沉积物柱状样深度/cm	样品数量/个
D231-1	还原性沉积物外部对照	14	7
D231-2	还原性沉积物上边缘交界	30	15
D231-3	还原性沉积物中心1	20	10
D231-4	还原性沉积物中心2	18	9
D231-5	还原性沉积物中心下边缘交界	22	11
D231-6	还原性沉积物白色菌席	18	9
合计			61

Tab.2 HCR-FISH probes used in this study

探针名称		靶向类群	探针序列(5’-3’)	来源
起始探针	ARCH915-H	Archaea	CCGAATACAAAGCATCAACGACTAGAAAAAAGTGCTCCCCCGCCAATTCCT	文献[8]
	EUB338-R	Bacteria	TACGCCCTAAGAATCCGAACCCTATGAAATAGCTGCCTCCCGTAGGAGT	文献[16]
	ANME-1-350-H	ANME-1	CCGAATACAAAGCATCAACGACTAGAAAAAAAGTTTTCGCGCCTGATGC	文献[16]
	ANME-2-538-H	ANME-2	CCGAATACAAAGCATCAACGACTAGAAAAAAGGCTACCACTCGGGCCGC	本研究
	ANME-3-1249-H	ANME-3	CCGAATACAAAGCATCAACGACTAGAAAAAATCGGAGTAGGGACCCATT	本研究
	DSS658-R	Desulfosarcina-Desulfococcus	TACGCCCTAAGAATCCGAACCCTATGAAATATCCACTTCCCTCTCCCAT	本研究
扩增探针	H1		CATAGGGTTCGGATTCTTAGGGCGTAGCAGCATCAATACGCCCTAAGAATCC	文献[21]
	H2		TACGCCCTAAGAATCCGAACCCTATGGGATTCTTAGGGCGTATTGATGCTGC	文献[21]
	R1		TCTAGTCGTTGATGCTTTGTATTCGGCGACAGATAACCGAATACAAAGCATC	文献[21]
	R2		CCGAATACAAAGCATCAACGACTAGAGATGCTTTGTATTCGGTTATCTGTCG	文献[21]

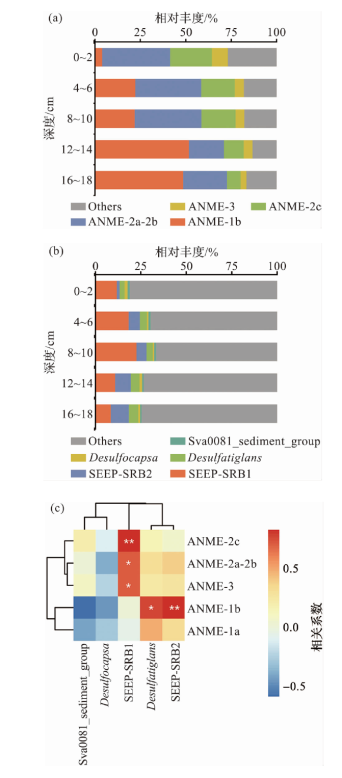

Fig.1 Composition and correlation of ANME and SRB groups in the sediment samples of Formosa cold seep (Figure a illustrates the variation of ANME groups with depth in site D231-4, where “Others” in the figure represents archaea other than ANME and ANME with ASV abundances less than 1%. Figure b depicts the variation of SRB groups with depth in site D231-4, where “Others” denotes bacteria other than SRB and SRB with ASV abundances less than 1%. Figure c presents a Pearson correlation heatmap of ANME and SRB groups across all depth intervals from station D231, based on 61 sediment samples. In the heatmap, * indicates p<0.05, and ** indicates p<0.01.)

Fig.2 HCR-FISH images of ANME-SRB consortia in the sediment samples of Formosa cold seep (Figure a illustrates microbial consortia composed of archaea and bacteria. Figure b displays ANME-SRB consortia consisting of ANME-2 and sulfate-reducing bacteria (SRB). No hybridization signals were observed for ANME-SRB consortia that were positively hybridized with the DSS probe when probed with ANME-1-targeting (Figure c) or ANME-3-targeting (Figure d) probes. Oligonucleotide probes DSS658-R and EUB338-R were employed to target SRB and bacteria, respectively, and were labeled red. Probes ARCH915-H, ANME-1-350-H, ANME-2-538-H, and ANME-3-1249-H were used to target archaea, ANME-1, ANME-2, and ANME-3, respectively, and were labeled green. DAPI staining was applied for nuclear staining and appeared blue.)

Tab.3 The ANME consortia number observed in the sediments at different depths

层位	细胞团数量/个
层位	ANME-1	ANME-2	ANME-3
0~2 cm	0	86	0
4~6 cm	0	71	0
8~10 cm	0	73	0
12~14 cm	0	82	0
16~18 cm	0	78	0
平均	0	78	0

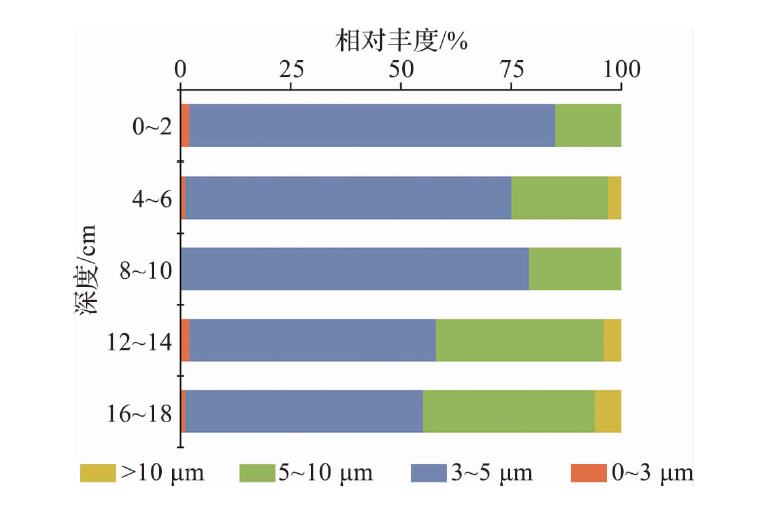

Fig.3 The composition of the consortia size in the sediment samples of Formosa cold seep

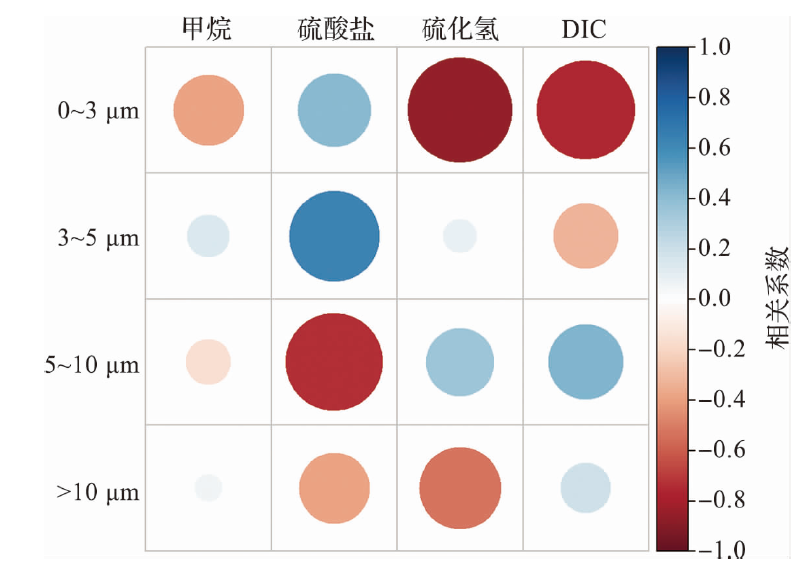

Fig.4 Heatmap of Pearson’s correlation coefficients between environmental factors and consortia sizes

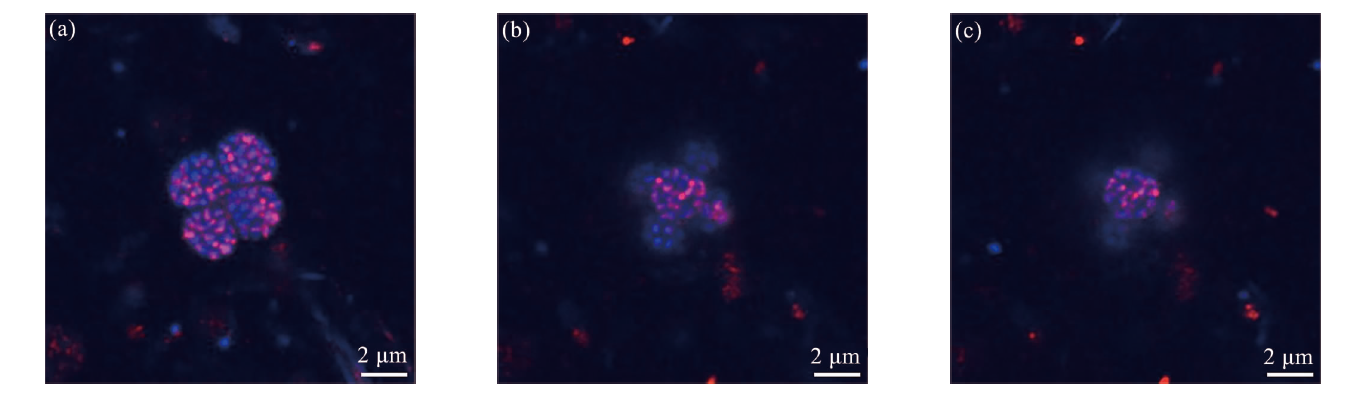

Fig.5 The HCR-FISH images of the consortia cluster (The microbial consortia exhibited positive hybridization with the SRB-targeting probe (DSS658-R, red), DAPI staining appeared blue. Figures a to c represent scanning results from different z-axes.)

References 38
